Upgrade failed for one member in the firebox cluster

Chris1414

I started an upgrade for a M295 cluster from 2025.1.4 to 2026.1. But only one firebox got upgraded. The other one failed ("Member upgrade failed. Could not apply the upgrade image to the member").

What can I do to get even the second one on 2026.1?

Thanks and regards,
Chris

Hero

https://techsearch.watchguard.com/KB?SFDCID=kA1Vr000000FFZpKAO

james.carson

Hi @Chris1414

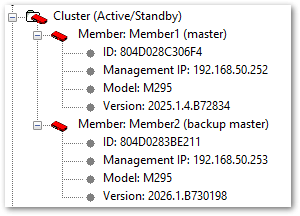

I'm assuming this cluster is locally managed since you're showing a WSM screenshot.

In order to fix this, you'll need to:

-In Policy Manager, go to Firecluster -> Configure, view members, and copy the feature key for member2 into a text document. You'll need this.

-If you don't already have 2026.1 downloaded, please download it from software.watchguard.com

-Remove Member2 from the cluster by uncabling it. This will allow you to connect to it directly.

-Factory reset Member2 following the directions here:
(Reset a Firebox)
https://www.watchguard.com/help/docs/help-center/en-US/Content/en-US/Fireware/backup_upgrade_recovery/recovery_procedures_c.html

-Using WSM, log directly into the firewall. If you plug a PC directly into port 1, you should get an IP address in the 10.0.1.x range, and the firewall will be 10.0.1.1.
Default passwords are
status / readonly
admin / readwrite

-In WSM, open Policy Manager, and go to Setup -> Feature Key. Import the feature key you got for member2 in the first step.

-Go to File -> Upgrade, and upgrade the firewall to 2026.1.

-Once complete, factory reset the firewall again

-Connect back to the network and connect to the cluster/member1.

-Open Firebox System Manager and allow it to connect.

-Connect Member2 back into the network by reconnecting the cables you disconnected previously; it should be cabled as it was originally. Member2 should be powered on in a factory reset state.

-In Firebox System Manager, go to Tools -> Cluster -> Discover Member.

-Member1 should attempt to configure Member2 and bring it back into the cluster.

(Discover a Cluster Member)
https://www.watchguard.com/help/docs/help-center/en-US/Content/en-US/Fireware/ha/cluster_discover_member_wsm.html

If this happens next time you attempt to upgrade the cluster, please generate a support file right after the upgrade fails and open a support case. Our support team can help determine why the upgrades are failing and work to correct the issue with you.

(Download a Diagnostic Log Message File in Firebox System Manager)
https://www.watchguard.com/help/docs/help-center/en-US/Content/en-US/Fireware/fsm/downoad_support_file.html

Hero

Hi Chris, there's a Know Ledge entry from Watchguard regarding this problem.

https://techsearch.watchguard.com/KB?type=Known Issues&SFDCID=kA1Vr000000FFZpKAO&lang=en_US
