New wan not working configuration / Nuevo

JorgeJorge
edited October 21 in Firebox - Networking, Multi-Wan, VLAN, NAT, SD-WAN

Hello, I have a new WAM:
IP Pool removed
Gateway removed
removed PUBLIC IP

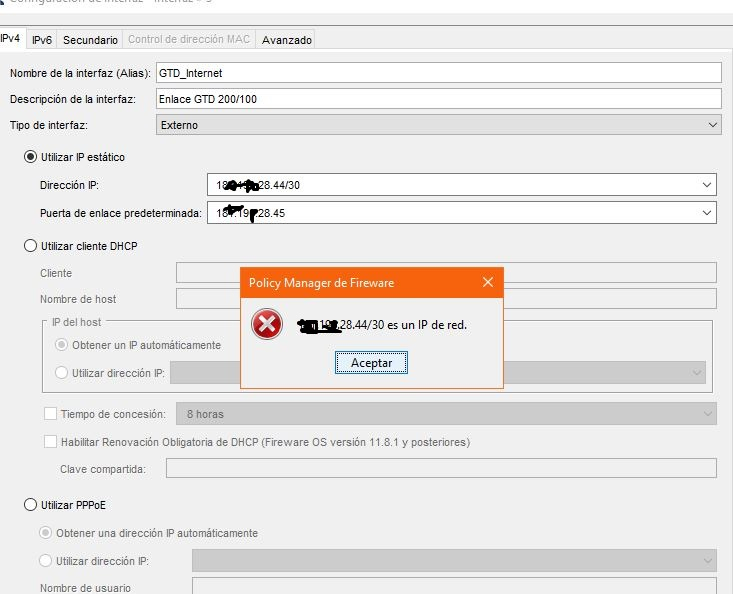

I'm getting configuration errors, but I managed to configure it without any errors, but browsing still isn't working.

Please help.

Thank you.

Hola, tengo un nuevo WAM:
Pool de IP removed
Puerta de Enlace removed
removed IP PUBLICA

Me da errores de configuración y logré configurar sin errores pero tampoco funciona navegar.

Su ayuda por favor,

Gracias

** removed public IP addresses from post - JC

Answers

  • Bruce_BriggsBruce_Briggs

    What IP addr are you using for external DNS resolution?
    If a DNS server from a different ISP, try using a public DNS server IP addr such as from Google: 8.8.8.8 or 8.8.4.4

  • Bruce_BriggsBruce_Briggs

    Check your firewall config: Network -> WINS/DNS tab

  • Bruce_BriggsBruce_Briggs

    Also, often the lowest IP addr and highest IP addr in a network range are not considered available for assignment to a device.

    The lowest is called the network address & the highest is called the broadcast address.

    You can have those 2 IP addrs available by changing the subnet mask from /30 to /29

  • JorgeJorge

    Hi Bruce_Briggs:

    "You can have those 2 IP addrs available by changing the subnet mask from /30 to /29"

    The "/30" is delivered by my ISP

  • Bruce_BriggsBruce_Briggs

    But you have control of the subnet mask that you use on your firewall.
    If you change to using a /29, don't use any of the IP addrs outside of your /30 range, but you can now use the .44 & .47 IP addrs on the firewall.
    And you should also be able to use .44/32 & .47/32 instead of /30

  • JorgeJorge

    I'll try it tomorrow Tuesday, thanks.
