Find a device that consumes bandwidth in Firebox WebUI

Alexander_KimAlexander_Kim
in Firebox - Other

Hi all,

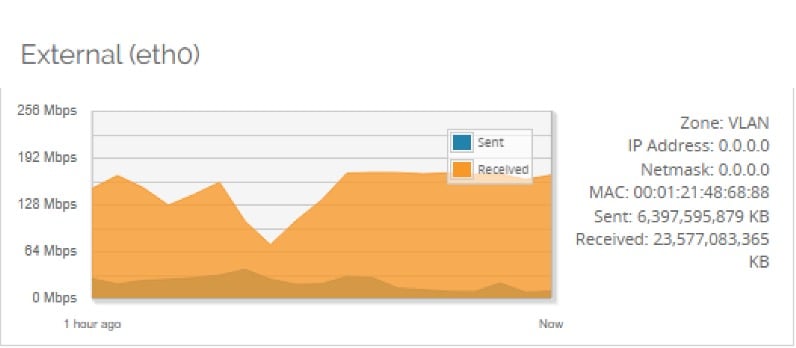

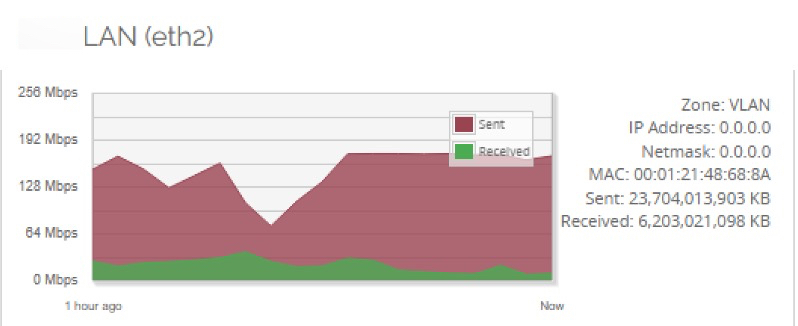

Under DASHBOARD - Interfaces - Bandwidth I see this.

As far as I understand it is a continuous bandwidth utilization.
How do I find a device that utilizes bandwidth in WebUI?

Comments

  • Bruce_BriggsBruce_Briggs
    edited October 7

    Dashboard -> Firewatch

    https://www.watchguard.com/help/docs/help-center/en-US/Content/en-US/Fireware/system_status/firewatch_web.html

  • james.carsonjames.carson Moderator, WatchGuard Representative
    edited October 7

    Firewatch, the bigger the square, the more bandwidth it's using.
    The front panel dashboard may also provide clues based on the top client log item.

    -James Carson
    WatchGuard Customer Support

  • Alexander_KimAlexander_Kim

    Thanks guys.
    Another question I have, under DASHBOARD - Interfaces the chart shows bandwidth utilization but doesn't show timing.

    Is it configurable?
    If not what can I use instead to see time scale.

  • Bruce_BriggsBruce_Briggs

    Top right of that page - is the graph interval of data being displayed - from 20 mins, to 7 days - 6 options in total

  • Alexander_KimAlexander_Kim

    @Bruce_Briggs said:
    Top right of that page - is the graph interval of data being displayed - from 20 mins, to 7 days - 6 options in total

    Yeah I know I can select graph interval.

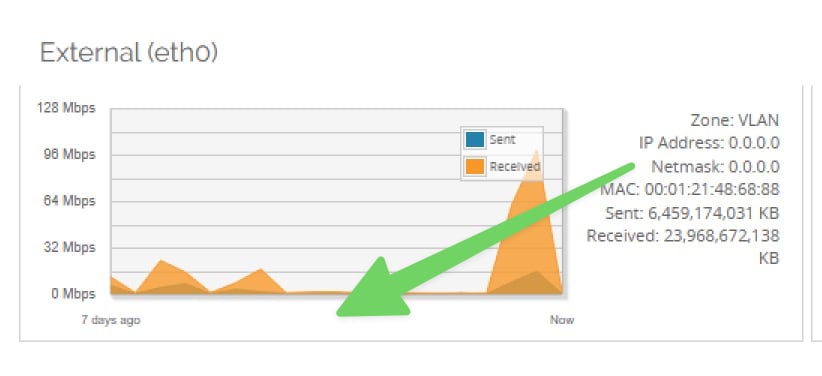

    However, I need to see time interval on the graph itself.
    Say, I select 7 days.
    However, on the chart I don't see MON, TUE, WED, THU and etc.
    Same for daily, I don't see 09.00, 10.00, 11.00 and etc.
    Can I see that with built-in tools or should install or use some add-ons?

  • Bruce_BriggsBruce_Briggs
    edited October 8

    There is no option to see the days or hours on that graph.

    Other options:
    1) log to Dimension - Top Clients list. Appropriate logging is needed to get accurate results
    Dimension is free, but it runs in a VM, and requires an active support license on your firewall for reporting to work.
    2) if you have managed switches, use SMPT tools to graph switch & firewall port bandwidth usage. PRTG & MRTG are some examples. MRTG is free. PRTG has a free version which monitors up to 100 measuring points.
    3) WSM Firebox System Manager - HostWatch shows real time usage of existing sessions.
    About HostWatch
    https://www.watchguard.com/help/docs/help-center/en-US/Content/en-US/Fireware/fsm/hostwatch_about_wsm.html?Highlight=hostwatch

Sign In to comment.
