Clients fail to obtain IPv6 address from Delegated Prefix

pacificadminpacificadmin
in Firebox - Networking, Multi-Wan, VLAN, NAT, SD-WAN

M370 running v12.11.2

External interface

Trusted interface

Front Panel info

This config should allow clients to configure a IPv6 address via SLAAC but it's not working. No clients are getting an IPv6 address on the 2600:1700:47d1:163f::/64 network. A packet trace shows that Router Advertisement packets are being sent from the Firebox.

However I notice that there is no Prefix Information included. Should that be there in this case?

Here's a screenshot from an unrelated blog post showing a RA packet that includes prefix information.

If that should be in the RA packet sent from the Firebox, why would it be missing?

Comments

  • pacificadminpacificadmin

    It turns out that if I hard code the prefix on the trusted interface, instead of using the eth0_prefix method, it works as expected.

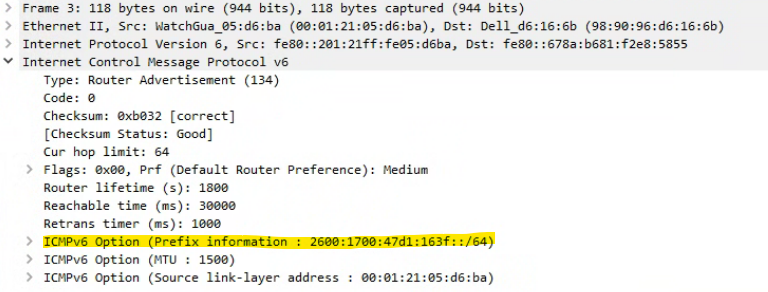

    The prefix information is now included in the RA packet and clients obtain an IPv6 address

    Is this a bug maybe?

  • james.carsonjames.carson Moderator, WatchGuard Representative

    Hi @pacificadmin

    I'd suggest opening a support case. We can gather additional data from your networkd logs.

    -James Carson
    WatchGuard Customer Support

  • pacificadminpacificadmin

    @james.carson Support case has been submitted (#02233905). They're saying it is a bug.
